| ENCLOSED CARGO TRAILERS | ||||||||
| 5' WIDE | 6' WIDE | 7' WIDE | 8' WIDE | 8.5' WIDE | ||||
 |

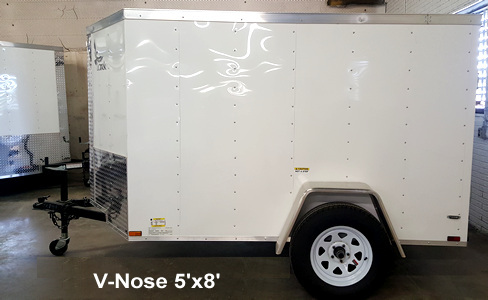

| 5' WIDE - SINGLE AXEL (SA) | ||||||
| 5' SA STANDARD FEATURES: | |||
|

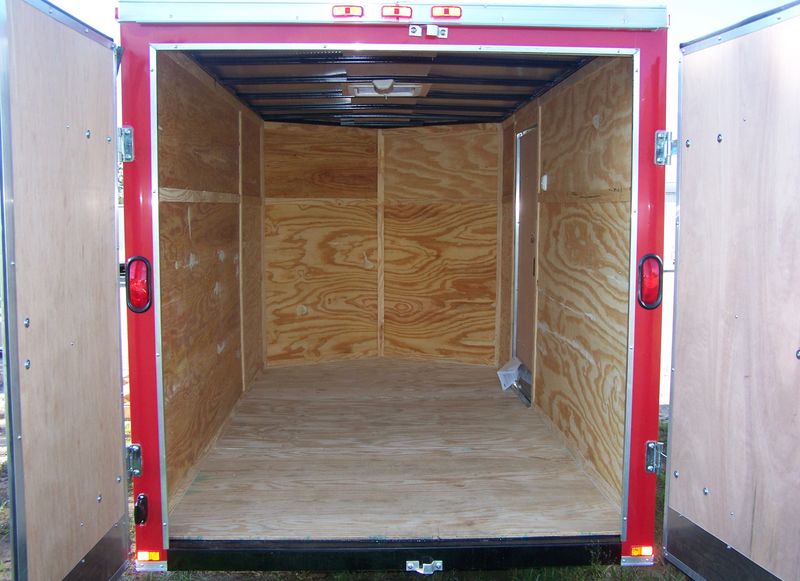

24" O.C. Cross Members 24" O.C. Bowed Roof Members 16" O.C. Sidewalls 2000lb A-Frame Jack 2" Coupler 3" Steel Tube Main Frame Rails White OR Black Alum. Metal Screwed Exterior Interior Height 60" 3/4" Plywood Floors 3/8" Plywood Walls (1) 12vt Dome Lite White Spoke Wheel |
St205 15" Bias Ply Tires Aluminum Jeep Fenders Galvalume Roof Non-Powered Roof Vent 24" Stone Guard 2990 lbs Drop Leaf Spring Axles E-Z Lube Hubs Flat 4 Pigtail On Units W/ Cut Brakes Single Rear Door Front Fiberglass Cap Door Hold Back Rear Door Handle |
 |
|
| 5' OPTIONAL UPGRADES: | |||
|

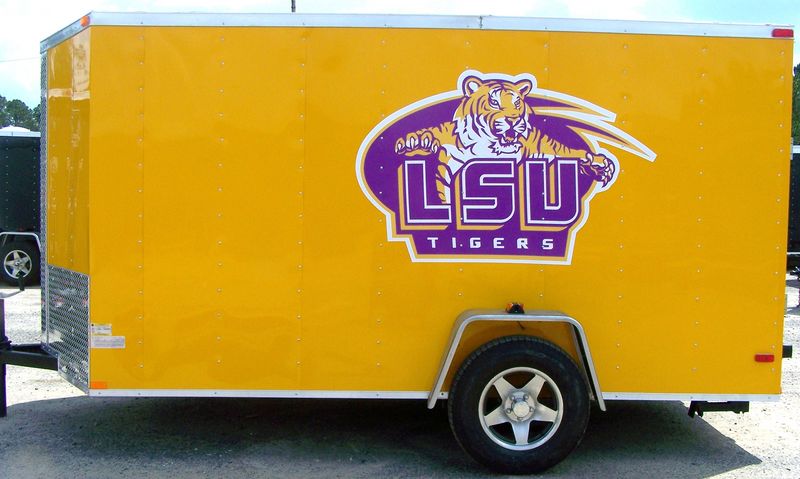

EXTERIOR: Optional Color: RED, GRAY, SILVER, ORANGE, YELLOW Upgrade to ATP Jeep Fenders 24" Anodized (Sides & Rear) 24" ATP Trim (Sides & Rear) 24" Colored Metal (Sides & Rear) Per Section Ladder Rack Door Hold Back Latch Screwless Metal (white) Fold Down Stabilizer Jacks ATP on V-Nose Sand Foot on Jack Med Duty Ramp Door w/Spring Assist Tongue Jack Caster Wheel |

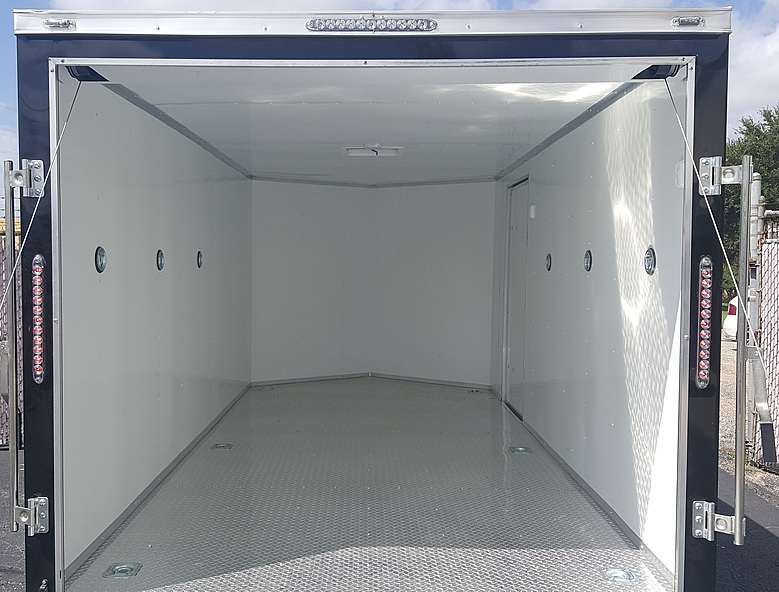

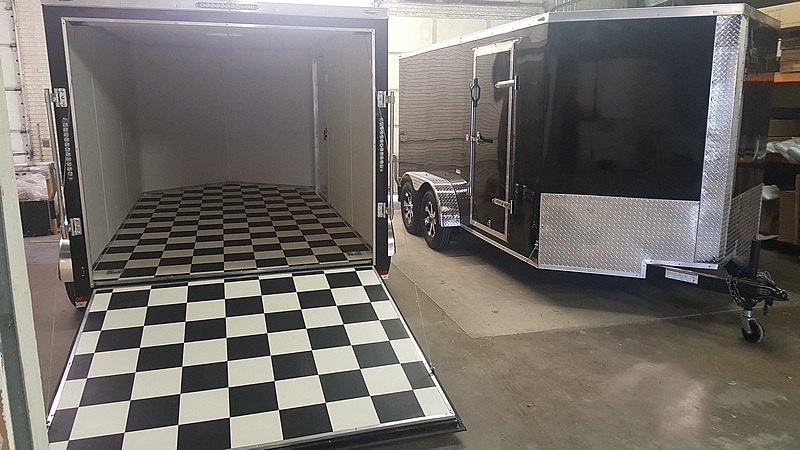

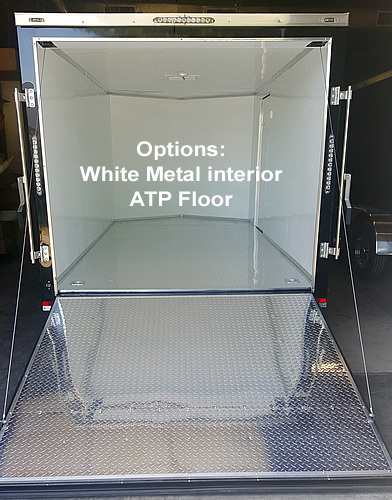

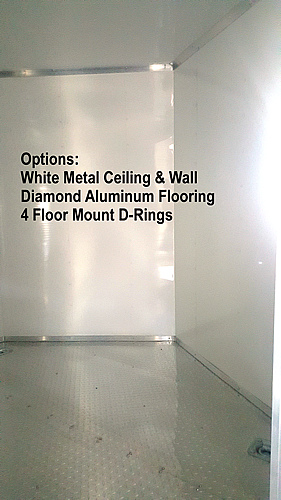

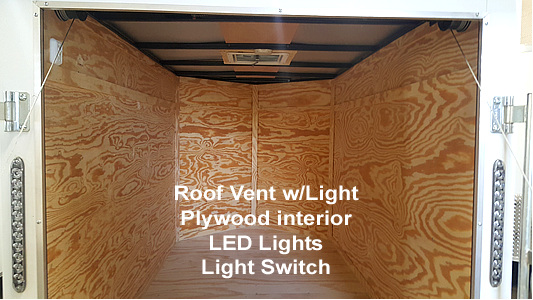

INTERIOR: Black & White Floor Tile ATP on Floor White Metal on Walls White Metal on Ceiling White Vinyl Ceiling White Vinyl Walls Raw Luan Ceiling Bead Board Ceiling Insulation Bead Board Wall Insulation Tread Plate Ramp & Flap Wall Mount D-Rings Floor Mount D-Rings (Steel Bracker) Removable Motorcycle Wheel Chocks E-Track Wall E-Track Floor w/ Steel Backer |
STRUCTURE: 16" O.C. Cross Member 6" Additional Height 12" Additional Height 18" Additional Height 3500 lb Drop Spring w/E.B. 5200 lb Drop Spring w/E.B. (225 Bias Tires) 3500 lb Torsion w/E.B. (205 Bias Tires) 5200 lb Torsion w/E.B.(225 Bias Tires) V-NOSE Spare Tire Mount-Tongue or Inside |
ELECTRICAL: 12 volt Dome Light w/ Switch 110 volt Int. Receptacle 110 volt GFI. Receptacle (int or ext.) 110 volt Int. Switch 60 amp Panel Box w/ Life Line 4' Fluorescent Light Electric Pkg - 2 Recepts, 1 Switch, 2- 4' Lights, 60 amp Box w/Life Line LED Tail Lights LED Lights (ALL) Brace for A/C Wire & Brace for A/C Plastic Sidewall Vents White/Black 13,500 A/C w/Heat Strip |
|
Ramp Door Flap 24" Side Door Flush Lock w/Bar Lock-Side Door Double Doors - Rear (IPO) Single Door WHEELS & TIRES: Upgrade to 15" Bias/Chrome Upgrade to 15" Bias/Star Mag Upgrade to 15" Radial White Spoke Upgrade to 15" Radial/Chrome Upgrade to 15" Radial/Star Mag 15" Bias/White Spoke - Spare 15" Radial/White Spoke - Spare |
 |
||
 | |||
| 6' WIDE - SINGLE AXEL (SA) | 6' WIDE - TANDEM AXEL (TA) | |||
| 6' SA STANDARD FEATURES: | 6' TA STANDARD FEATURES: | |||
| 24" O.C. Cross Members 24" O.C. Bowed Roof Members 16" O.C. Sidewalls 2000lb A-Frame Jack 2" Coupler 32" Side Door 3" Steel Tube Main Frame Rails White OR Black Alum. Metal Screwed Exterior Interior Height 72 " 3/4" Plywood Floors 3/8" Plywood Walls (1) 12vt Dome Lite White Spoke Wheel |
ST205 15" Bias Ply Tires Aluminum Jeep Fenders Galvalume Roof Non-Powered Roof Vent 24" Stone Guard 2990 lbs Drop Leaf Spring Axles E-Z Lube Hubs Flat 4 Pigtail On Units W/ Out Brakes Double Rear Door Front Fiberglass Cap Door Hold Back Side Door Handle |
24" O.C. Cross Members 24" O.C. Bowed Roof Members 16" O.C. Sidewalls 2000lb A-Frame Jack 2 5/16 " Coupler 32" Side Door on 12" & 14' 24" Side Door on 10' 4" Steel Tube Main Frame Rails White Alum. Metal Screwed Exterior Interior Height 72 " 3/4" Plywood Floors 3/8" Plywood Walls (1) 12vt Dome Lite |
White Spoke Wheel ST205 15" Bias Ply Tires Aluminum Jeep Fenders Galvalume Roof Non-Powered Roof Vent 24" Stone Guard 3500 lbs Drop Leaf Spring Axles Electric Brakers (both axels) E-Z Lube Hubs Double Rear Door Front Fiberglass Cap Door Hold Back Side Door Handle 7 Way Bargman plug |
|
| 6' OPTIONAL UPGRADES: | |||
|
EXTERIOR: Optional Color: RED, GRAY, SILVER, ORANGE, YELLOW Upgrade to ATP Jeep Fenders (SA) Upgrade to ATP Tear Drop Fenders (TA) 24" Anodized (Sides & Rear) 24" ATP Trim (Sides & Rear) 24" Colored Metal (Sides & Rear) Per Section Ladder Rack Smooth, Screwless Metal Fold Down Stabilizer Jacks ATP on V-Nose Sand Foot on Jack Med Duty Ramp Door w/Spring Assist Tongue Jack Caster Wheel Ramp Door Flap |
INTERIOR: Black & White Floor Tile ATP on Floor White Metal on Walls White Metal on Ceiling White Vinyl Ceiling White Vinyl Walls Raw Luan Ceiling Bead Board Ceiling Insulation Bead Board Wall Insulation Tread Plate Ramp & Flap Wall Mount D-Rings Floor Mount D-Rings (Steel Bracker) Removable Motorcycle Wheel Chocks E-Track Wall E-Track Floor w/ Steel Backer |
STRUCTURE: 16" O.C. Cross Member 2 5/16 Coulper (SA) 6" Additional Height 12" Additional Height 18" Additional Height 3500 lb Drop Spring w/E.B (SA). 5200 lb Drop Spring w/E.B. (225 Bias Tires) 3500 lb Torsion w/E.B. (205 Bias Tires) 5200 lb Torsion w/E.B.(225 Bias Tires) V-NOSE Spare Tire Mount-Tongue or Inside |
ELECTRICAL: 12 volt Dome Light w/ Switch 110 volt Int. Receptacle 110 volt GFI. Receptacle (int or ext.) 110 volt Int. Switch 60 amp Panel Box w/ Life Line 4' Fluorescent Light Electric Pkg - 2 Recepts, 1 Switch, 2- 4' Lights, 60 amp Box w/Life Line LED Tail Lights LED Lights (ALL) Brace for A/C Wire & Brace for A/C Plastic Sidewall Vents White/Black 2-way Sidewall Vent - Alum./White (set of 2) 13,500 A/C w/Heat Strip |
|
Upgrade to 36" Side Door Door Hold Back Latch Flush Lock w/Bar Lock-Side Door WHEELS & TIRES: Upgrade to 15" Bias/Chrome Upgrade to 15" Bias/Star Mag Upgrade to 15" Radial White Spoke Upgrade to 15" Radial/Chrome Upgrade to 15" Radial/Star Mag 15" Bias/White Spoke - Spare 15" Radial/White Spoke - Spare |
  |
||
 |
 |
|
| ||

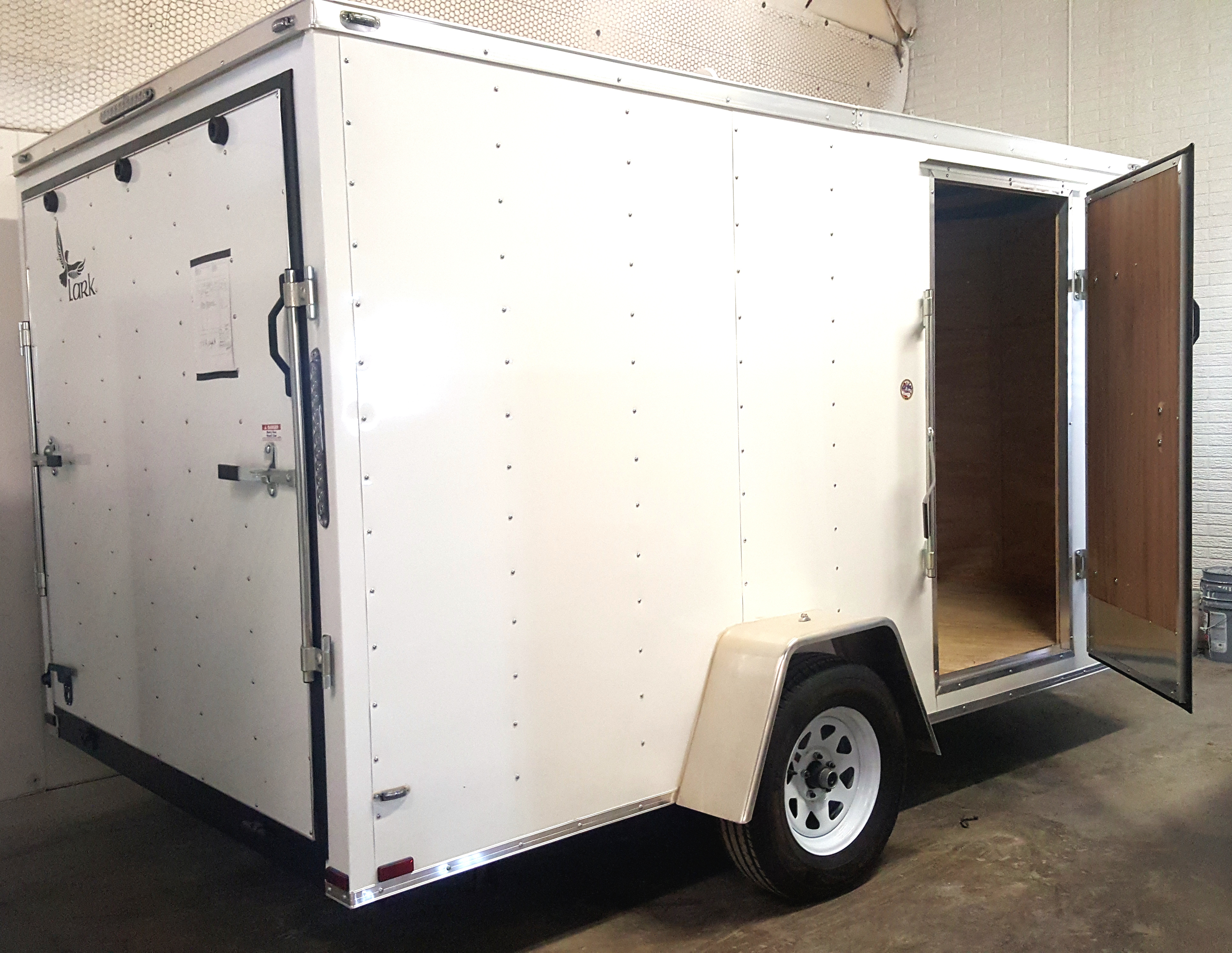

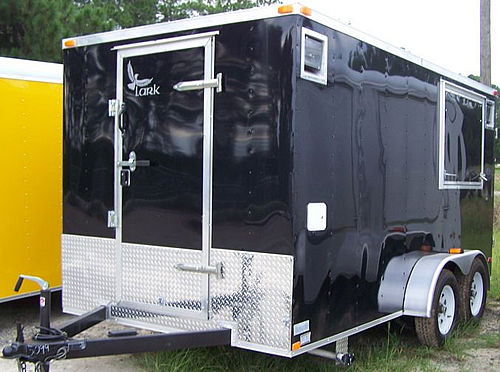

| 7' WIDE - SINGLE AXEL (SA) | 7' WIDE - TANDEM AXEL (TA) | |||
| 7' SA STANDARD FEATURES: | 7' TA STANDARD FEATURES: | |||
| 24" O.C. Cross Members 24" O.C. Bowed Roof Members 16" O.C. Sidewalls 2000lb A-Frame Jack 2" Coupler 32" Side Door 4" Steel Tube Main Frame Rails White OR Black Alum. Metal Screwed Exterior Interior Height 72 " 3/4" Plywood Floors 3/8" Plywood Walls (1) 12vt Dome Lite White Spoke Wheel |
St205 15" Bias Ply Tires Aluminum Jeep Fenders Galvalume Roof Non-Powered Roof Vent 24" Stone Guard 2990 lbs Drop Leaf Spring Axles E-Z Lube Hubs Flat 4 Pigtail On Units W/ Out Brakes Double Rear Door Front Fiberglass Cap Door Hold Back Side Door Handle |
24" O.C. Cross Members 24" O.C. Bowed Roof Members 16" O.C. Sidewalls 2000lb A-Frame Jack 2 5/16 " Coupler 32" Side Door 14' & under - 4" Steel Tube Main Frame Rails 16' & over - 6" Steel Tube Main Frame Rails White Alum. Metal Screwed Exterior Interior Height 72 " 3/4" Plywood Floors 3/8" Plywood Walls (1) 12vt Dome Lite |
White Spoke Wheel St205 15" Bias Ply Tires Aluminum Jeep Fenders Galvalume Roof Non-Powered Roof Vent 24" Stone Guard 3500 lbs Drop Leaf Spring Axles E-Z Lube Hubs Double Rear Door Front Fiberglass Cap Door Hold Back Side Door Handle 7 Way Bargman plug on Brake Axles |
|
| 7' OPTIONAL UPGRADES: | ||||
|
EXTERIOR: Optional Color: RED, GRAY, SILVER, ORANGE, YELLOW Upgrade to ATP Jeep Fenders 24" Anodized (Sides & Rear) 24" ATP Trim (Sides & Rear) 24" Colored Metal (Sides & Rear) Per Section Ladder Rack Smooth, Screwless Metal Fold Down Stabilizer Jacks ATP on V-Nose Sand Foot on Jack Med Duty Ramp Door w/Spring Assist Heavy Duty Ramp Door w/Spring Assist Tongue Jack Caster Wheel Ramp Door Flap Upgrade to 36" Side Door Door Hold Back Latch Flush Lock w/Bar Lock-Side Door |
INTERIOR: Black & White Floor Tile ATP on Floor White Metal on Walls White Metal on Ceiling White Vinyl Ceiling White Vinyl Walls Raw Luan Ceiling Bead Board Ceiling Insulation Bead Board Wall Insulation Tread Plate Ramp & Flap Wall Mount D-Rings Floor Mount D-Rings (Steel Bracker) Removable Motorcycle Wheel Chocks E-Track Wall E-Track Floor w/ Steel Backer |
STRUCTURE: 16" O.C. Cross Member 2 5/16 Coulper (SA) 6" Additional Height 12" Additional Height 18" Additional Height 3500 lb Drop Spring w/E.B. (SA) 5200 lb Drop Spring w/E.B. (225 Bias Tires) 3500 lb Torsion w/E.B. (205 Bias Tires) 5200 lb Torsion w/E.B.(225 Bias Tires) 7000 lb Torsion w/E.B.w/Triple ATube Tongue & 15K V-NOSE Spare Tire Mount-Tongue or Inside |
ELECTRICAL: 12 volt Dome Light w/ Switch 110 volt Int. Receptacle 110 volt GFI. Receptacle (int or ext.) 110 volt Int. Switch 60 amp Panel Box w/ Life Line 4' Fluorescent Light Electric Pkg - 2 Recepts, 1 Switch, 2- 4' Lights, 60 amp Box w/Life Line LED Tail Lights LED Lights (ALL) Brace for A/C Wire & Brace for A/C Plastic Sidewall Vents White/Black 2-way Sidewall Vent - Alum./White (set of 2) 13,500 A/C w/Heat Strip |
|
|

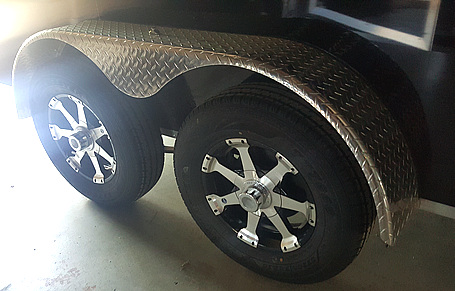

WHEELS & TIRES: Upgrade to 15" Bias/Chrome Upgrade to 15" Bias/Star Mag Upgrade to 15" Radial White Spoke Upgrade to 15" Radial/Chrome Upgrade to 15" Radial/Star Mag 15" Bias/White Spoke - Spare 15" Radial/White Spoke - Spare |
  |
|||
| ||||
| 8' WIDE - TANDEM AXEL (TA) |
| 8' TA STANDARD FEATURES: | |||
|
16" O.C. Cross Members 24" O.C. Bowed Roof Members 16" O.C. Sidewalls 2000lb A-Frame Jack 2 5/16 " Coupler 36" Side Door Door Hold Back 6" I-Beam Steel Frame White OR Black Alum. Metal Screwed Exterior Interior Height 78" 3/4" Plywood Floors 3/8" Plywood Walls (1) 12vt Dome Lite |
White Spoke Wheel ST205 15" Bias Ply Tires Aluminum Jeep Fenders Galvalume Roof Non-Powered Roof Vent 24" Stone Guard 3500 lbs Drop Leaf Spring Axlesw/E.B. E-Z Lube Hubs 7 Way Bargman plug Double Rear Door Side Door Handle |
||
| 8' OPTIONAL UPGRADES: | |||
|
EXTERIOR: Optional Color: RED, GRAY, SILVER, ORANGE, YELLOW Upgrade to ATP Jeep Fenders 24" Anodized (Sides & Rear) 24" ATP Trim (Sides & Rear) 24" Colored Metal (Sides & Rear) Per Section Ladder Rack Smooth, Screwless Metal Fold Down Stabilizer Jacks ATP on V-Nose Sand Foot on Jack Med Duty Ramp Door w/Spring Assist Heavy Duty Ramp Door w/Spring Assist Tongue Jack Caster Wheel Ramp Door Flap Upgrade to 48" Side Door Door Hold Back Latch Flush Lock w/Bar Lock-Side Door WHEELS & TIRES: Upgrade to 15" Bias/Chrome Upgrade to 15" Bias/Star Mag Upgrade to 15" Radial White Spoke Upgrade to 15" Radial/Chrome Upgrade to 15" Radial/Star Mag 15" Bias/White Spoke - Spare 15" Radial/White Spoke - Spare |
INTERIOR: Black & White Floor Tile ATP on Floor White Metal on Walls White Metal on Ceiling White Vinyl Ceiling White Vinyl Walls Raw Luan Ceiling Bead Board Ceiling Insulation Bead Board Wall Insulation Tread Plate Ramp & Flap Wall Mount D-Rings Floor Mount D-Rings (Steel Bracker) Removable Motorcycle Wheel Chocks E-Track Wall E-Track Floor w/ Steel Backer  |
STRUCTURE: 16" O.C. Cross Member 6" Additional Height 12" Additional Height 18" Additional Height 5200 lb Drop Spring w/E.B. (225 Bias Tires) 3500 lb Torsion w/E.B. (205 Bias Tires) 5200 lb Torsion w/E.B.(225 Bias Tires) 7000 lb Torsion w/E.B.w/Triple Tube Tongue & 15K V-NOSE Spare Tire Mount-Tongue or Inside  |
ELECTRICAL: 12 volt Dome Light w/ Switch 110 volt Int. Receptacle 110 volt GFI. Receptacle (int or ext.) 110 volt Int. Switch 60 amp Panel Box w/ Life Line 4' Fluorescent Light Electric Pkg - 2 Recepts, 1 Switch, 2- 4' Lights, 60 amp Box w/Life Line LED Tail Lights LED Lights (ALL) Brace for A/C Wire & Brace for A/C Plastic Sidewall Vents White/Black 2-way Sidewall Vent - Alum./White (set of 2) 13,500 A/C w/Heat Strip  |
| |||
| 8.5' WIDE - TANDEM AXEL (TA) |
| STANDARD FEATURES: | STANDARD FEATURES: | |||
| 16" O.C. Cross Members 24" O.C. Bowed Roof Members 16" O.C. Sidewalls 2000lb A-Frame Jack 2 5/16 " Coupler 36" Side Door Door Hold Back 6" I-Beam Steel Frame 20' & over - one piece Roof White OR Black Alum. Metal Screwed Exterior Interior Height 78" 3/4" Plywood Floors 3/8" Plywood Walls (1) 12vt Dome Lite White Spoke Wheel 4x 5000 lb E-Rings |
ST205 15" Bias Ply Tires |
16" O.C. Cross Members 24" O.C. Bowed Roof Members 16" O.C. Sidewalls 2000lb A-Frame Jack 2 5/16 " Coupler 36" Side Door Door Hold Back 8" I-Beam Steel Frame 30' & over - one piece Roof White Alum. Metal Screwed Exterior Interior Height 78" 3/4" Plywood Floors 3/8" Plywood Walls (1) 12vt Dome Lite White Spoke Wheel 4x 5000 lb E-Rings |
ST205 15" Bias Ply Tires |
|
| 8.5' OPTIONAL UPGRADES: | |||
|
EXTERIOR: Optional Color: RED, GRAY, SILVER, ORANGE, YELLOW Upgrade to ATP Jeep Fenders 24" Anodized (Sides & Rear) 24" ATP Trim (Sides & Rear) 24" Colored Metal (Sides & Rear) Per Section Ladder Rack Smooth, Screwless Metal Fold Down Stabilizer Jacks ATP on V-Nose Sand Foot on Jack Med Duty Ramp Door w/Spring Assist Heavy Duty Ramp Door w/Spring Assist Tongue Jack Caster Wheel Ramp Door Flap 48" Side Door Door Hold Back Latch Flush Lock w/Bar Lock-Side Door Barnett Door w/Flushlock & Bar Lock |
INTERIOR: Black & White Floor Tile ATP on Floor White Metal on Walls White Metal on Ceiling White Vinyl Ceiling White Vinyl Walls Raw Luan Ceiling Bead Board Ceiling Insulation Bead Board Wall Insulation Tread Plate Ramp & Flap Wall Mount D-Rings Floor Mount D-Rings (Steel Bracker) Removable Motorcycle Wheel Chocks E-Track Wall E-Track Floor w/ Steel Backer |
STRUCTURE: 16" O.C. Cross Member 6" Additional Height 12" Additional Height 18" Additional Height 5200 lb Drop Spring w/E.B. (225 Bias Tires) (SA) 3500 lb Torsion w/E.B. (205 Bias Tires) (SA) 5200 lb Torsion w/E.B.(225 Bias Tires) 7000 lb Torsion w/E.B.w/Triple Tube Tongue & 15K V-NOSE Spare Tire Mount-Tongue or Inside StepWell w/ ATP Trim |
ELECTRICAL: 12 volt Dome Light w/ Switch 110 volt Int. Receptacle 110 volt GFI. Receptacle (int or ext.) 110 volt Int. Switch 60 amp Panel Box w/ Life Line 4' Fluorescent Light Electric Pkg - 2 Recepts, 1 Switch, 2- 4' Lights, 60 amp Box w/Life Line LED Tail Lights LED Lights (ALL) Brace for A/C Wire & Brace for A/C Plastic Sidewall Vents White/Black 2-way Sidewall Vent - Alum./White (set of 2) 13,500 A/C w/Heat Strip |
|
WHEELS & TIRES: Upgrade to 15" Bias/Chrome Upgrade to 15" Bias/Star Mag Upgrade to 15" Radial White Spoke Upgrade to 15" Radial/Chrome Upgrade to 15" Radial/Star Mag 15" Bias/White Spoke - Spare 15" Radial/White Spoke - Spare 15" 225 Bias/White Spoke - Spare (26' & OVER) 15" 225 Radial/White Spoke - Spare (26' & OVER) |
 | ||
| |||
